URM-S Series
This mechanical model is designed for light to medium jobs.lt is used in jobs up to 8 mm thickness materials. It is used in aluminium bendings, air conditioning channels, advertising panels and machine sheet metal cover parts
URM-S Standards
• 3 Roll
• Two rolls powered by a single chain and belt driven helical type gearbox and gear system
• SAE 1050 (CK 45-50) Quality certificated steel rolls with high tensile strength
• Steel welded main frames
• Mechanical manual openable drop-end
• Mobile control panel
• Conical bending device
• Central lubrication system
• Top roll support system
• Precision bending with brake motor
• Motorised adjustment of back roll
This mechanical model is designed for light to medium jobs. It is used in jobs up to 5 mm thickness materials. It is used in aluminium bendings, air conditioning channels, advertising panels and sheet metal covers. Its ideal price makes it very attractive for small workshops.

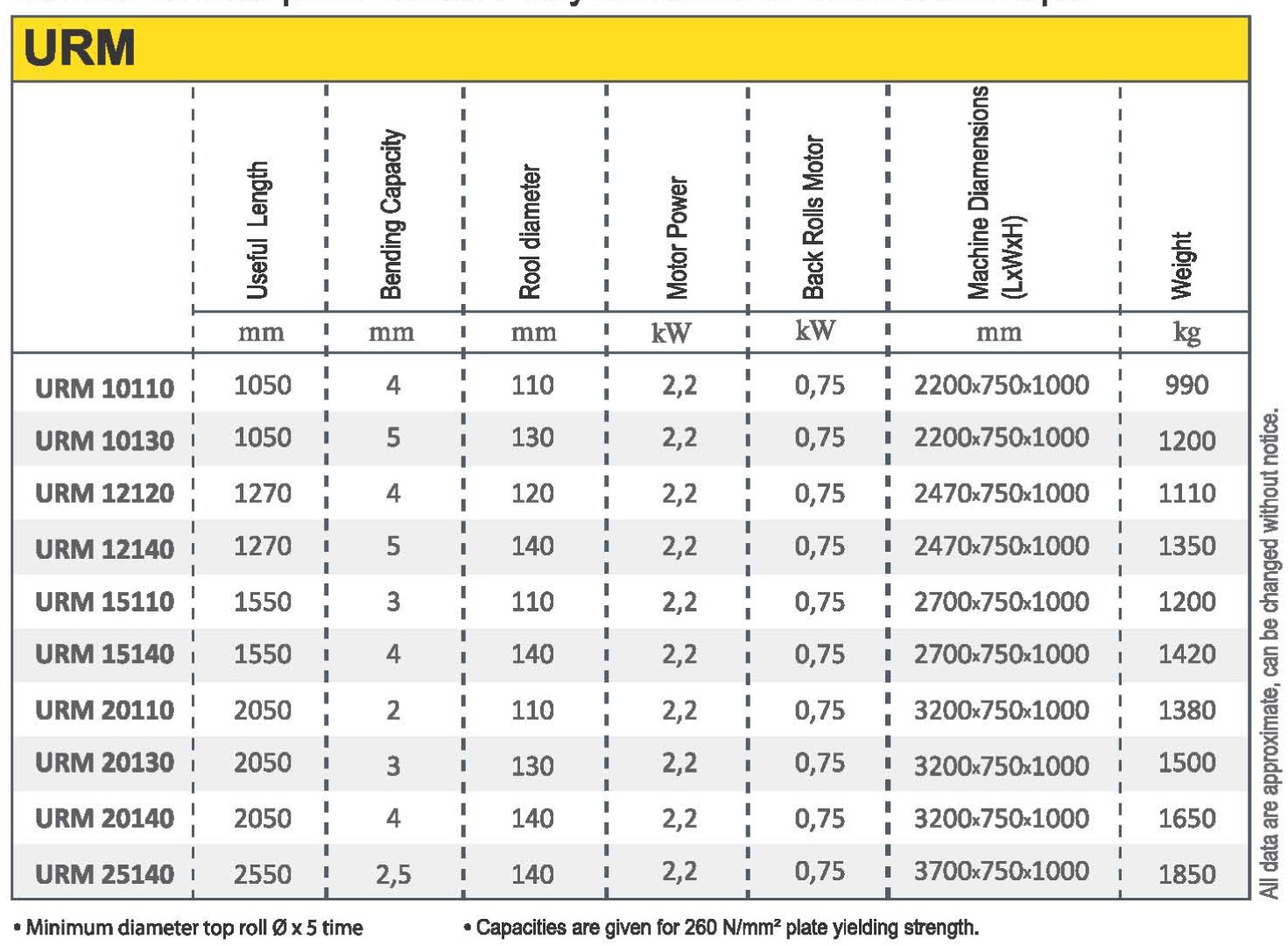

URM Standards
• 3 Roll
• Two rolls powered by a single gearbox and gear system for top and bottom rolls.
• SAE 1050 quality certificated steel rolls with high tensile strength.
• Spheroid cast iron main frames.
• Mobile control panel by foot pedal.
• Conical bending device.
• Manual drop-end.
• Top roll support system.
• Wire grooves at the end of the rolls
• Precision bending with brake motor
• Model URM 25140 produced standard with motorised back roll
This mechanical model is designed for light to medium jobs. It is used in jobs up to 3 mm thickness materials. It is used in aluminium bendings, air conditioning channels, advertising panels and sheet metal covers. Its ideal price makes it very attractive for small workshops

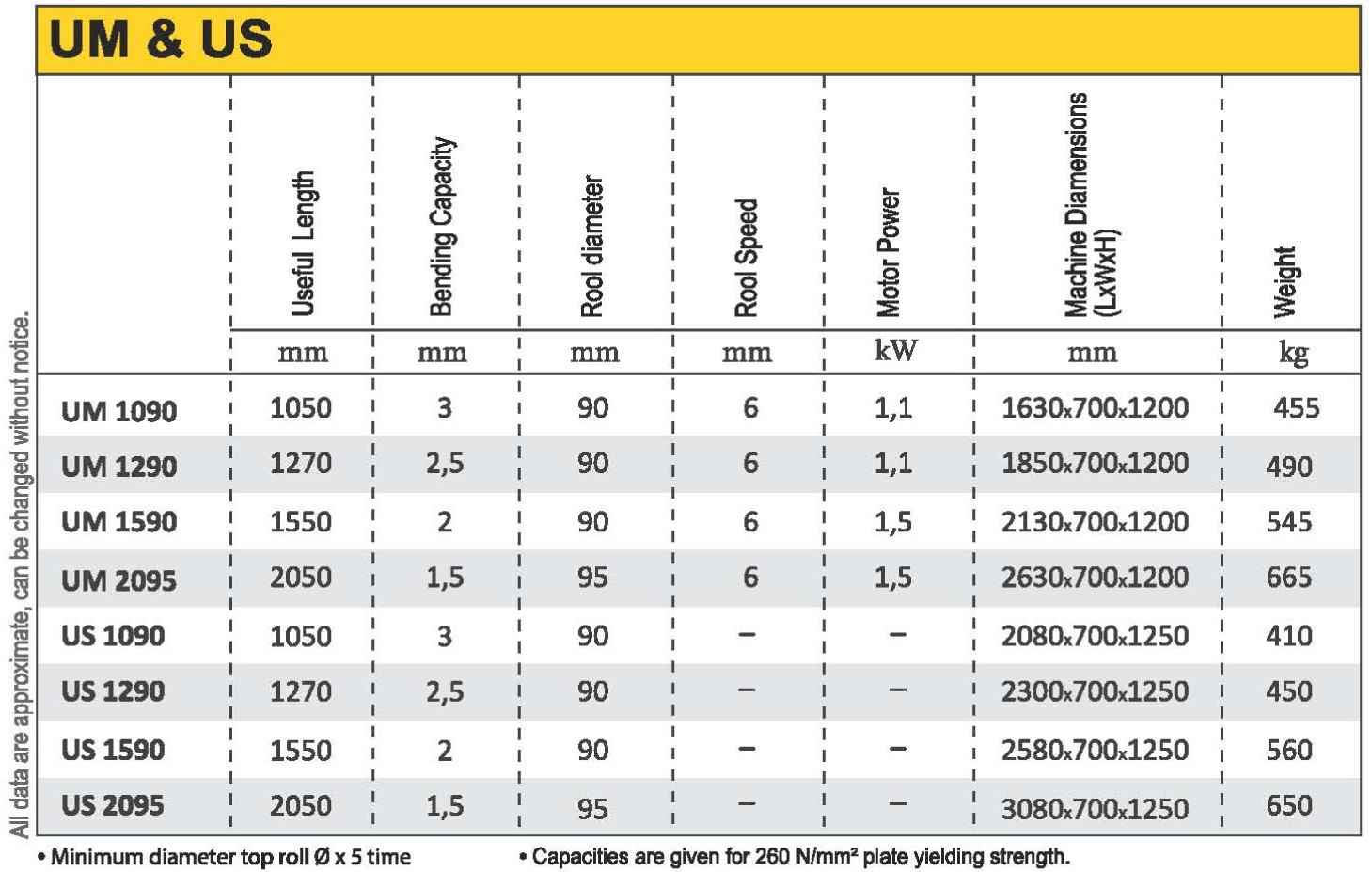

UM & US Standards
• Top and bottom rolls powered by a single gearbox and gear system on UM models
• SAE 1050 quality certificated steel rolls with high tensile strength
• Cast iron main frames
• Mobile control panel by foot pedal on UM models
• Conical bending device
• Manual drop-end
• Wire grooves at the end of the rolls
• Precision bending with brake motor on UM models
This mechanical model is designed for light to medium jobs. It is used in jobs up to 2 mm thickness materials. Hand powered or motorised models are available. It is used in aluminium bendings, air conditioning channels, advertising panels and sheet metal covers. Its ideal price makes it very attractive for small workshops

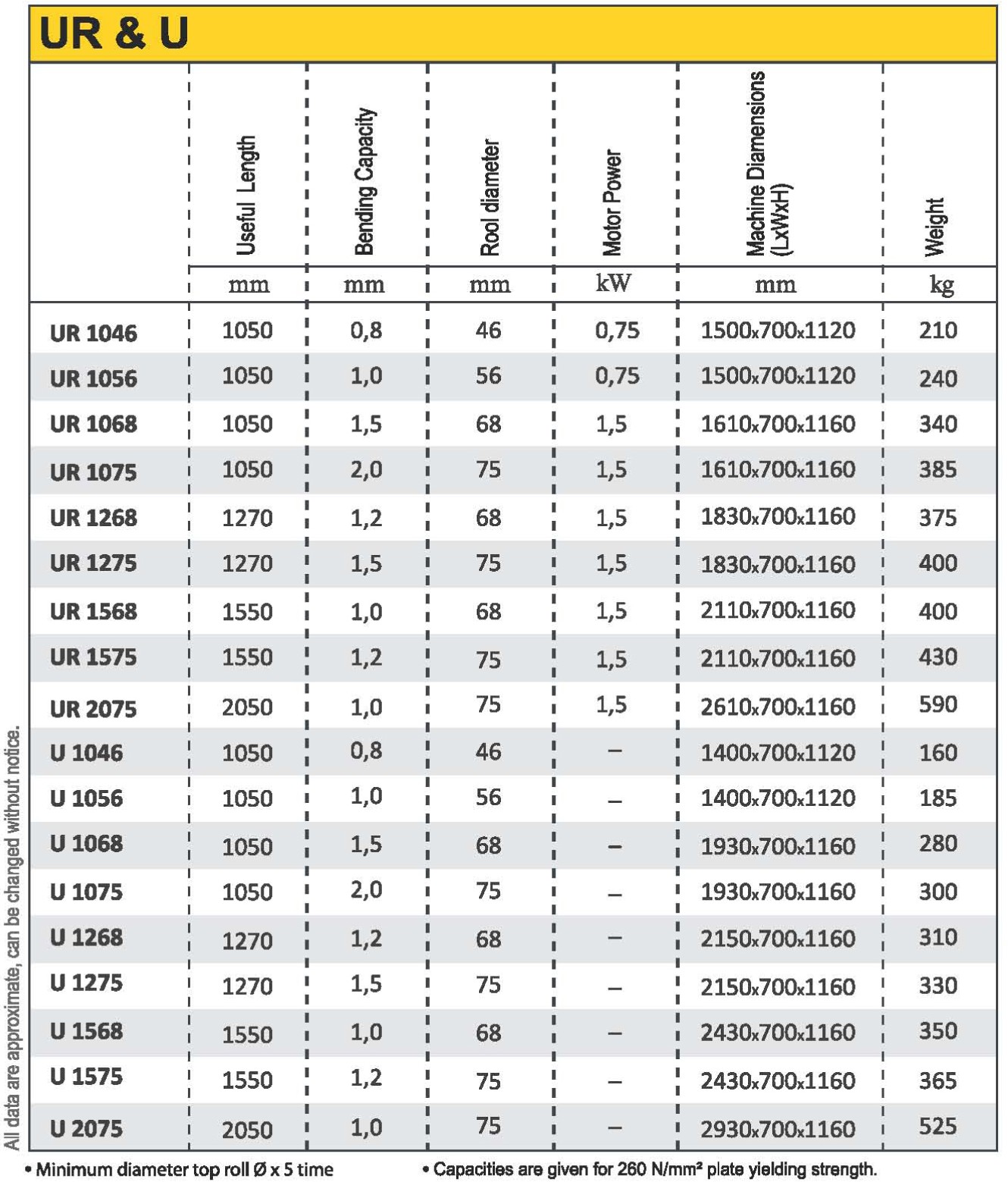

UR & U Standards
• Top and bottom rolls powered by a single gearbox and gear system on UR models
• SAE 1050 quality certificated steel rolls with high tensile strength
• Cast iron main frames
• Mobile control panel by foot pedal on UR models
• Conical bending device
• Manual drop-end
• Wire grooves at the end of the rolls
• Precision bending with brake motor on UR models
