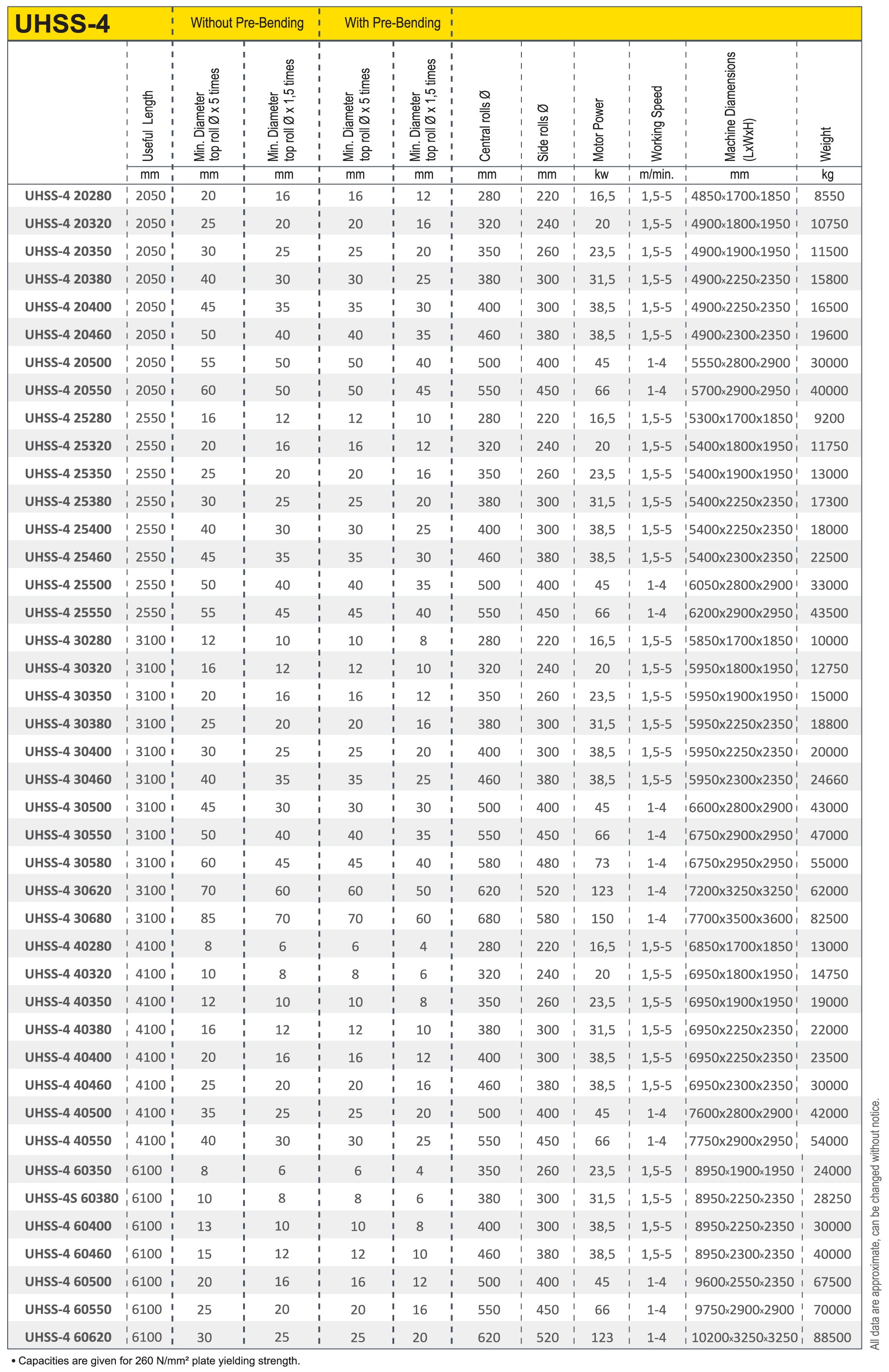

UHSS-4 Series
UHSS-4 Plate bending machines are very suitable for medium and heavy plates or stainless steel bending. Ferrules in full circle or varying radiuses can be done easily on this machines. Our UHSS-4 models are also ideal machines for wind towers production, shipyard and pipeline industries
UHSS-4 Standards
• 4 Roll
• Pinch roll and lateral rolls move pyramidal linear with hydraulic pistons
• Top roll and lateral rolls are powered by hydromotor and planetary gearbox (3 roll driven system)
• 3 digital readouts for easy roll positioing
• Hydraulic tiltable drop-end for easy removal of finished ferrule
• Easy operation with mobile control panel
• Hydraulic balancing system (Ø460 and below)
• Electronic balancing system (Ø500 and over)
• Induction hardened forged SAE 1050 (CK 45-50) steel rolls
• Overload protection
• Conical bending device
• Central lubrication system
• Welded steel frames
• Double speed working system
• Linear guide system
• 4 Roll
• Pinch roll and lateral rolls move with hydraulic pistons in orbital way
• Top roll powered by hydromotor and planetary gearbox (only top roll powered)
• Three digital readouts for easy roll positioning
• Hydraulic drop-end for easy removal of finished ferrule
• Induction hardened forged or rolled SAE 1050 (CK 45-50) steel rolls
• Easy operation with mobile control panel
• Hydraulic balancing system
• Double speed working system
• Conical bending device
• Welded steel frames
• Overload protection

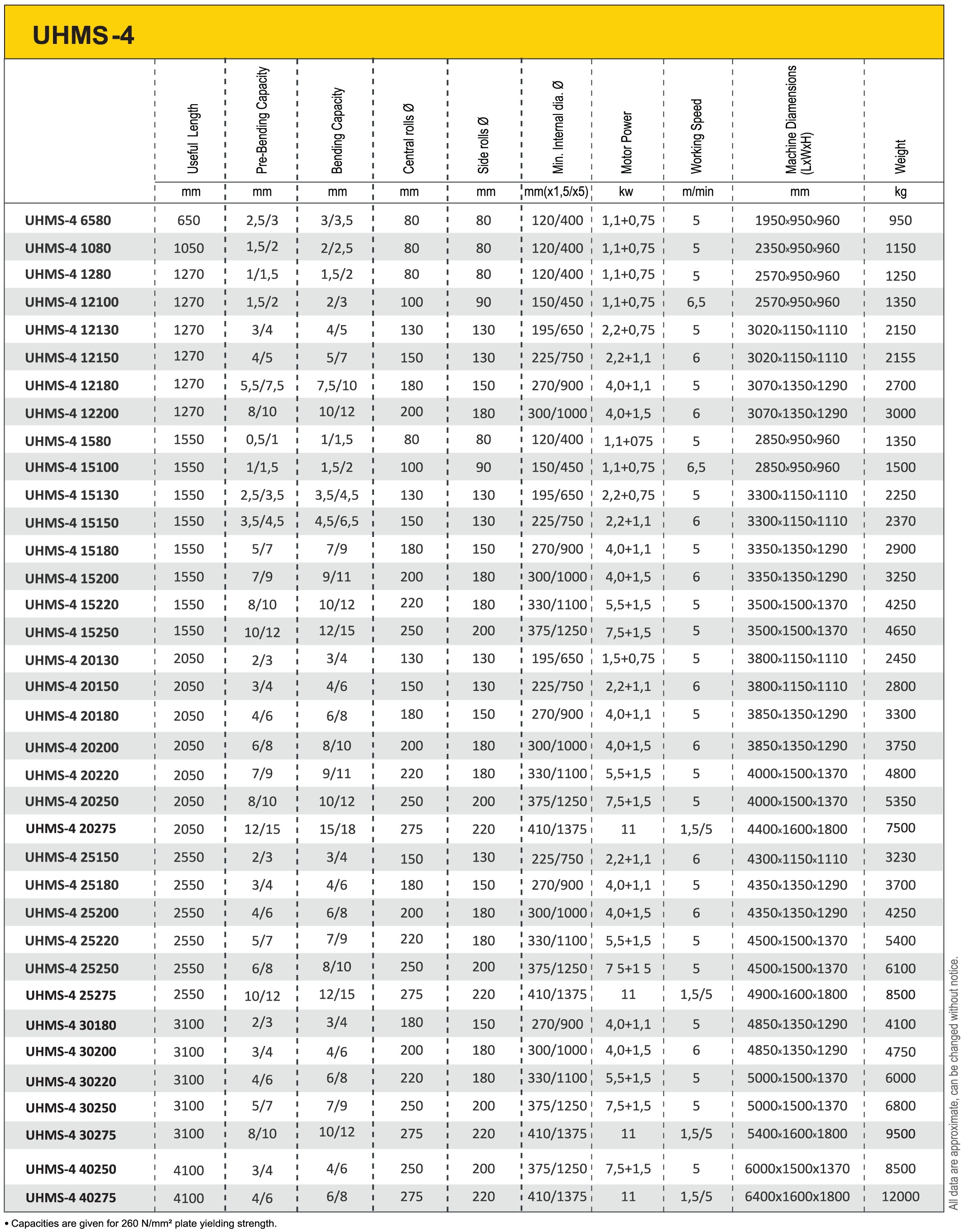

UHMS-4 plate bending machines are very suitable for light and medium plates, aluminum or stainless steel bending. Ferrules in full circle or varying radiuses can be done easily on this machines. Our UHMS-4 type machines are top and bottom roll powered models.
UHMS-4 Standards
• 4 Roll
• Pinch roll and lateral rolls move with pyramid linear direct movement by hydraulic pistons.
• Overload protection
• Top roll is powered by electrical motor and plan etary gearbox. Bottom roll powered with cardan joint system (two rolls powered)
• Three digital readouts for easy roll positioning
• Hydraulic drop-end for easy removal of finished ferrule
• Easy operation with mobile control panel
• Welded steel frames
• Induction hardened forged or rolled SAE 1050 (CK 45-50) steel rolls
• Conical bending device
• Hydraulic balancing system
UHS-3 plate bending machines are very suitable for medium and light plates or stainless steel bending. Ferrules in full circle or varying radiuses can be done easily on these machines.
UHS-3 Standards
• 3 Roll
• Lateral rolls move with hydraulic pistons in orbital way
• Overload protection
• All rolls are powered by hydromotor and planetary gearbox
• Hydraulic drop-end for easy removal of finished ferrule
• Easy operation with mobile control panel
• Two digital readouts for easy roll positioning of bottom rolls
• Welded steel frames
• Induction hardened, hot rolled SAE 1050 (CK 45-50) steel rolls
• Conical bending device with
• Hydraulic balancing system
• Extended roll shafts for profile and pipe bending operation

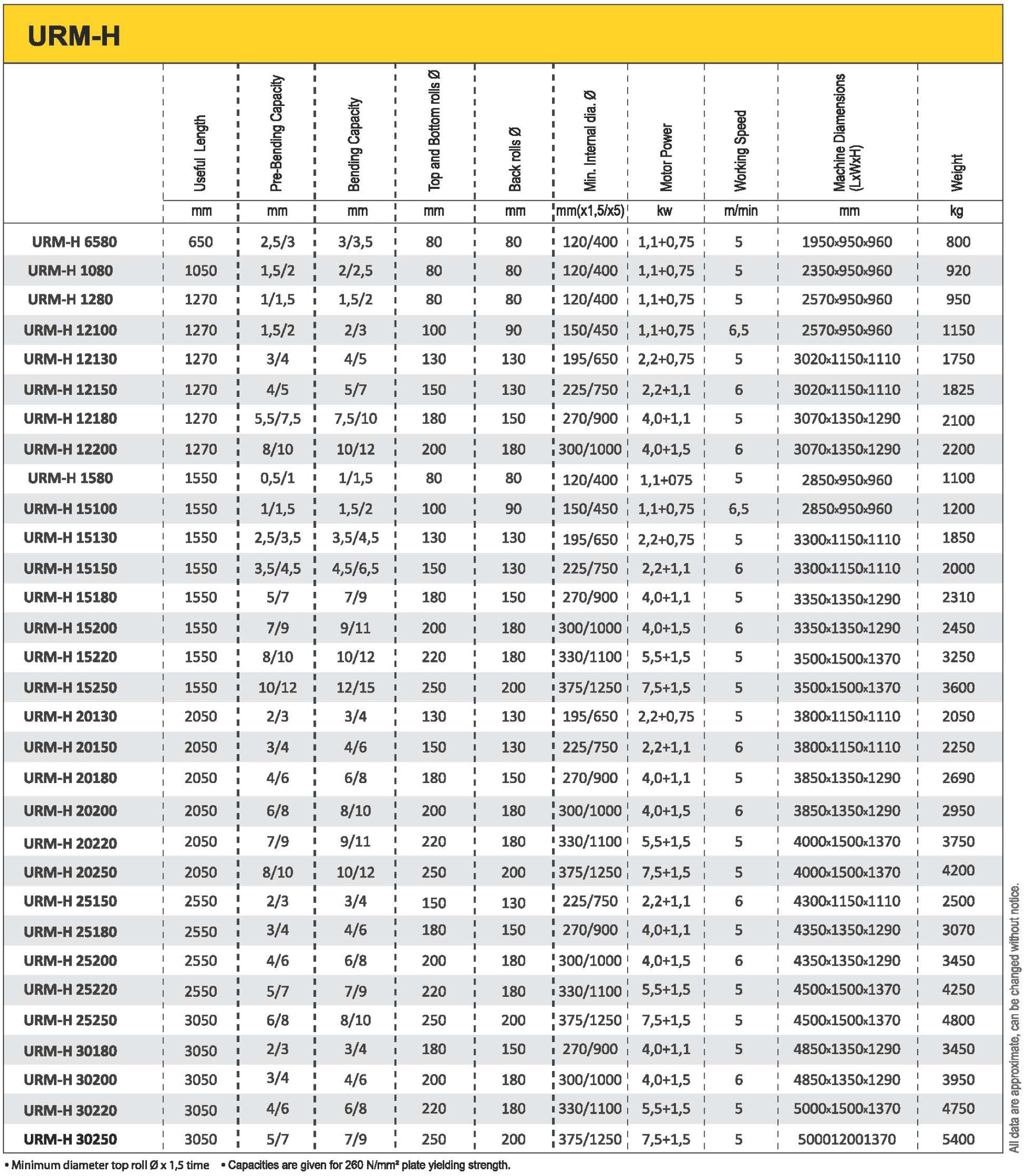

This hydraulic model is designed for light to medium jobs. It is used in jobs up to 10 mm hickness materials. It is used in aluminium bendings, air conditioning channels, advertising panels and machine sheet metal cover parts
URM-H Standards
• 3 Roll
• Steel welded main frames
• Hydraulic drop-end
• Mobile control panel
• Motor powered central rolls
• Hydraulic movement of back roll and bottom roll
• Main motor with brake system
• Conical bending, pre-bending available
• Support system for top roll
• Planetary gearbox two rolls driven
• Back roll with ball bearings for thin sheet works
• SAE 1050 (CK45-50) certificated forged steel rolls with high tensile strength
• Hardened rolls
• 2 pes. digital read-outs
